Bolt seals

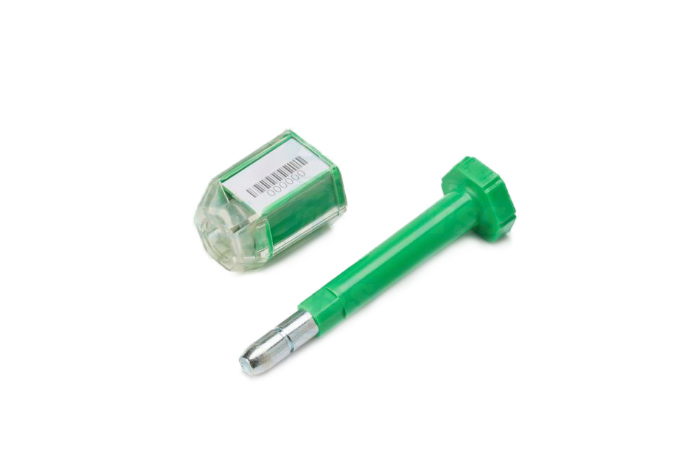

Bolt seals are security seals that cannot be removed by hand, requiring tools such as bolt cutters or saws for removal. They're commonly used for long distance transportation, especially on container doors and will deter opportunistic theft.

Our varied range of seals cover a range of requirements, from simple seals for domestic and local transportation as well as ultra-high-security seals with C-TPAT compliance and certified to the latest ISO 17712 standard.

Back to collection

comparison table

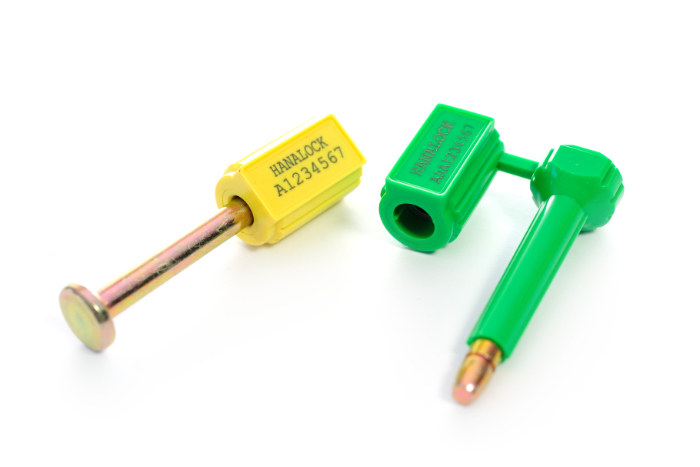

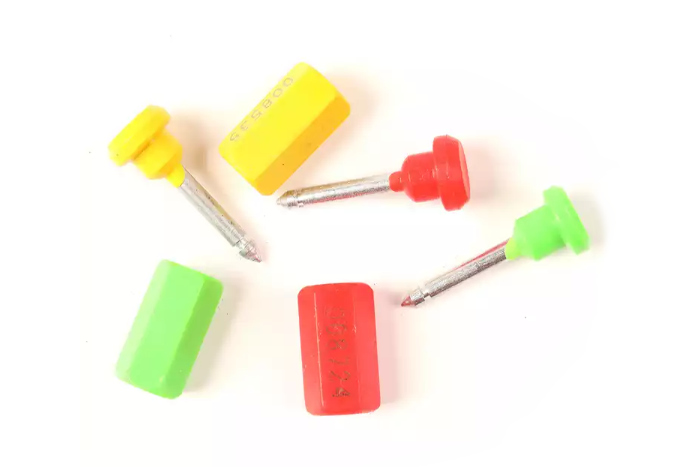

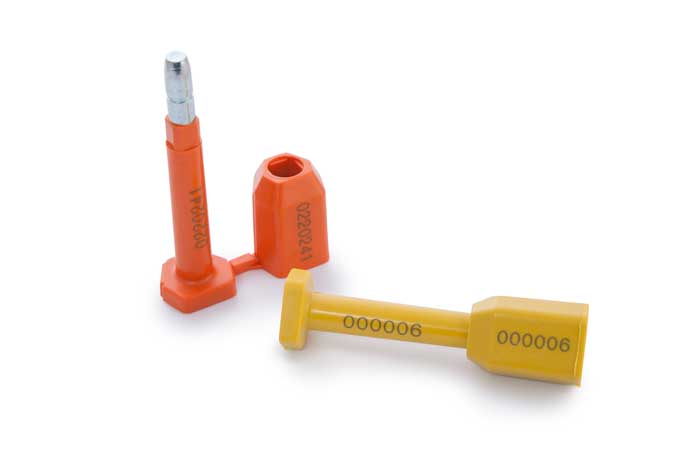

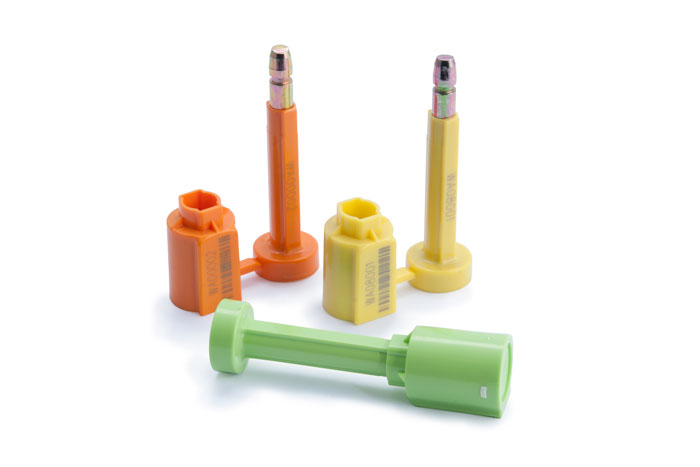

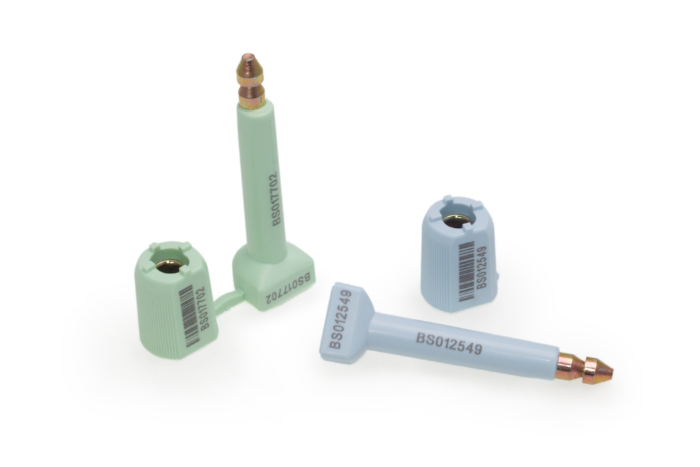

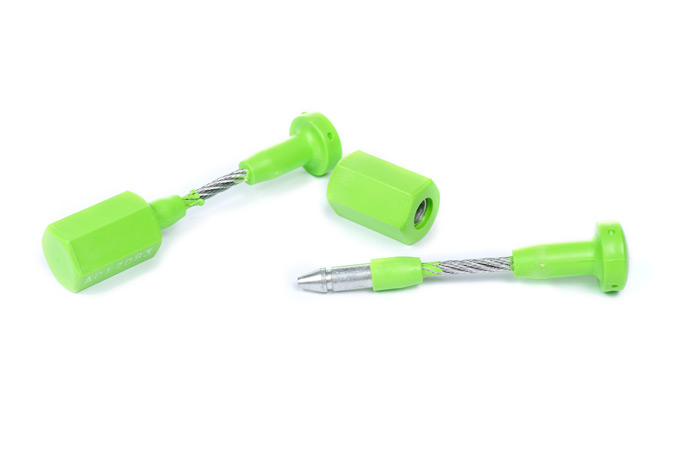

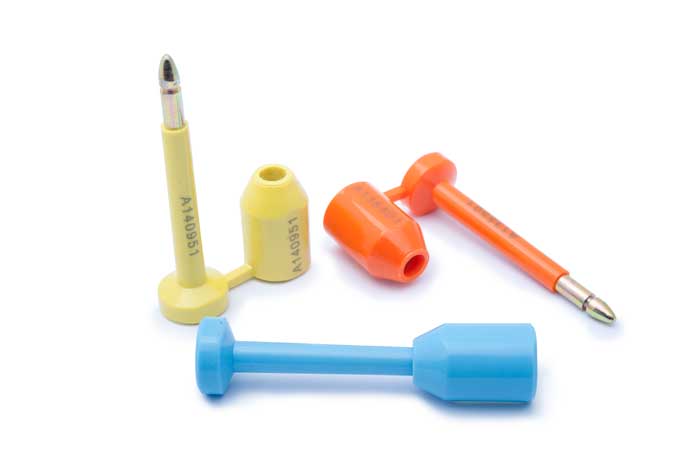

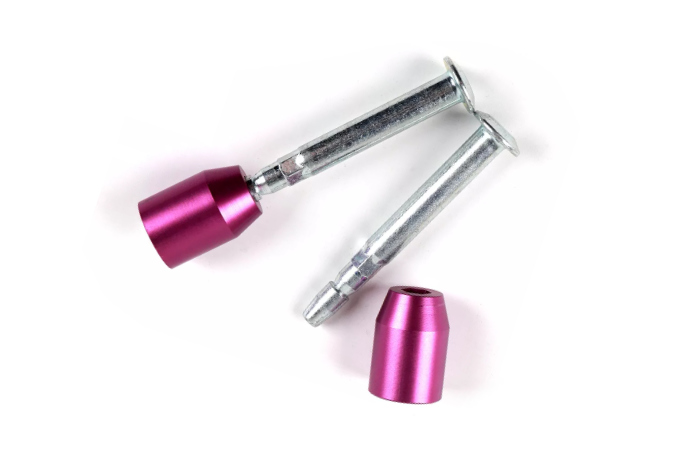

  EnaBolt 1c EnaBolt 2a EnaBolt 3 EnaBolt 4 EnaBolt 5a EnaBolt 6 EnaBolt 7 EnaBolt 8 EnaBolt mini HanaLock

barrel length 31mm 37.0mm 18.0mm 17.0mm 33.8mm 33mm 34mm 31mm 25mm 35mm
barrel diameter 23.6mm 23.5mm 20.0mm 18.0mm 24.5mm 20.5mm 15mm 22mm 12.7mm 22.8mm
pin length 87.4mm 84.5mm 87.0mm 70.0mm 85.5mm 74.0mm 74mm 81.6mm 37mm 76mm (uncoated)
78.5mm (coated)
pin diameter 8.0mm steel pin
(11.0mm inc. coating)
8.0mm steel pin
(10.0mm inc. coating)
4.0mm cable wire 5.0mm steel pin
(7.0mm inc. coating)
8.0mm steel pin
(11.0mm inc. coating)
8.0mm steel pin 8.0mm steel pin
(11.0mm inc. coating)
8.0mm steel pin 4mm 8.0mm (uncoated)
12.6mm (coated)
material steel
abs plastic
steel
abs plastic
steel
abs plastic
steel
abs plastic
steel
abs plastic
steel
abs plastic
steel
abs plastic
steel steel
abs plastic
steel
abs plastic
locking distance 54.9mm 44.0mm 54.0mm 44.0mm 48mm 48mm 48mm tba 20mm 54mm (uncoated)
41mm (coated)
break strength >1,500kg-f >1,500kg-f >660kg-f >500kg-f >1,500kg-f >1,200kg-f >1,500kg-f >1,500kg-f >300kg-f >1,000kg-f
export friendly yes yes no no yes yes yes yes no yes
iso/pas 17712 yes yes yes yes yes yes yes
anti-spin yes yes no no yes yes yes yes no yes, limited
encapulation no no no no no no yes no no no
feature flexible cable all-metal build 180° rotation limit
