UHF RFID high security bolt seals

Description

These high security bolt seals that work passively with UHF RFID. The bolt seal contains an electronic RFID chip with a unique ID to help you to identify the seal, container or vehicle. Ideal solution for guaranteeing cargo security, tamper evidence along the shipping and supply chain.

Available with identification only, or also with tamper evidence built-in capability. The seals can be customised on request including logo, serial numbers, barcode or QR Code.

Applications

  • Cargo containers
  • Trailer vehicle doors
  • Rail freight

Key Features

  • ISO 17712:2013 High Security Seal compliant
  • 860-960 MHz UHF frequencies
  • ISO/IEC 18000-63 RF Standard

Customisations

  • Various lengths
  • Colour
  • Logo printing
  • Other markings
  • Barcode, QR codes
  • Serial numbers

Minimum order quantity required.

Specifications

  • Operating temperatures –30°C to 80°C
  • Reading max distance between 3m to 8m depending on the reader

Share

bsealed.co/rfidbolt
instagram.com/bsealedau

  locking barrel pin flag
NeptuneSeal distance: 33mm
diameter: 8.0mm
length: 35mm
diameter: 22mm
length: 74mm
diameter: 8mm
length: 115mm
width: 42mm
thickness: 4mm
ask us

Images

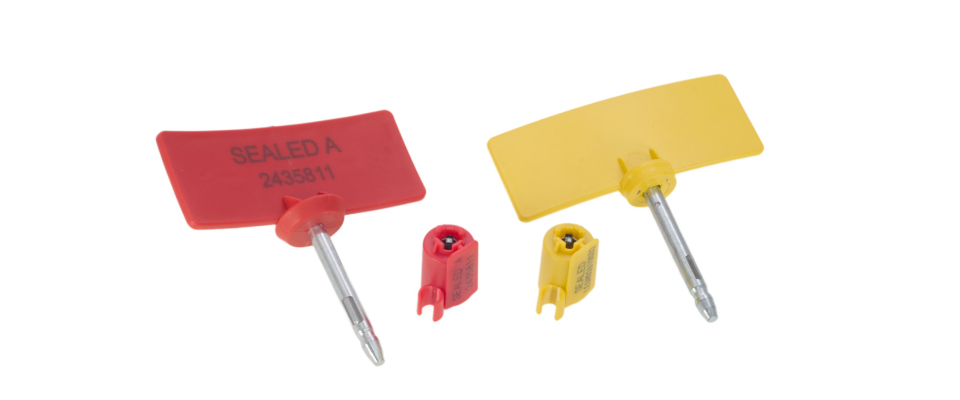

Standard colours available
Standard colours available

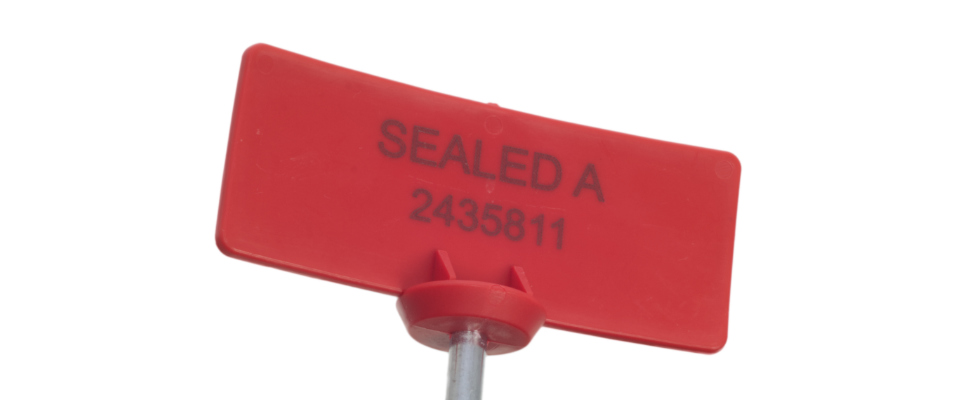

Large flag to print customised markings such as logo, barcode, and QR codes
Large flag to print customised markings such as logo, barcode, and QR codes

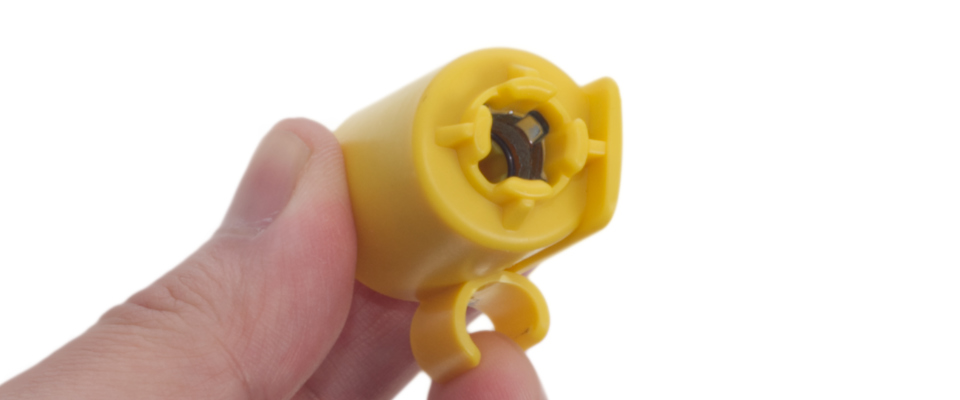

Anti-spin ISO 17712 compliant
Anti-spin ISO 17712 compliant

Contact us

If you require brochures or samples please don't hesitate to contact us.
