OctoLock

Description

The OctoLock is a heavy duty fixed loop seal suitable for truck doors and tankers. It features a double-locking mechanism for enhanced security. A break point is introduced to the seal to allow removal of the seal by hand.

Patented double-locking mechanism, reinforced acetal locking jaw and a heavy duty octogonal shaped head provides a high level of security.

Applications

  • Vehicle doors and side curtains
  • Petroleum tankers
  • Bulk food and liquid tankers
  • Livestock transportation including seafood
  • Shipping containers
  • Bonded warehouse

Key Features

  • Patented double locking mechanism
  • Special acetal locking jaw for tamper resistance
  • Most secure of the fixed length seals because of its shape
  • Requires no tool for removal
  • Moulded in high quality food grade polyproylene

Specifications

  • Average break strength of 15kg-f
  • Suitable for temperatures ranging from -20°C to +60°C

Customisations

  • Colour
  • Logo printing
  • Other markings
  • Serial numbers
  • Biodegradable

Minimum order quantity required.

Share

bsealed.co/octolock
instagram.com/bsealedau

  product code strap length strap width strap thickness locking diameter shop link
OctoLock OL20FA 205.9mm 8.5mm 1.4mm Average 66.0mm available, ask us

Recyclability

Recyclable plastic pp Recyclable plastic others

Images

The OctoLock sports an octogonal shape impervious to tamper attempts by squeezing the chamber with implements such as pliers. The shape will deform easily and show evidence of tampering.
The OctoLock sports an octogonal shape impervious to tamper attempts by squeezing the chamber with implements such as pliers. The shape will deform easily and show evidence of tampering.

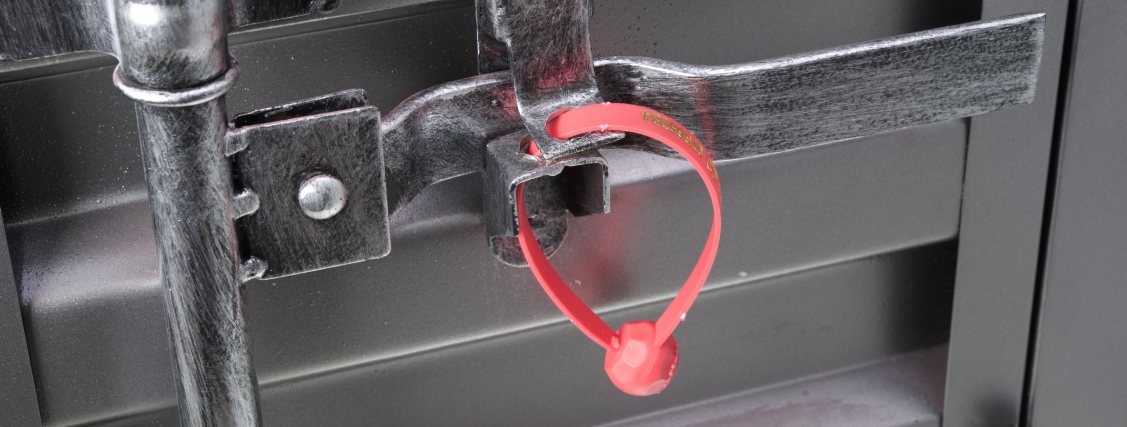

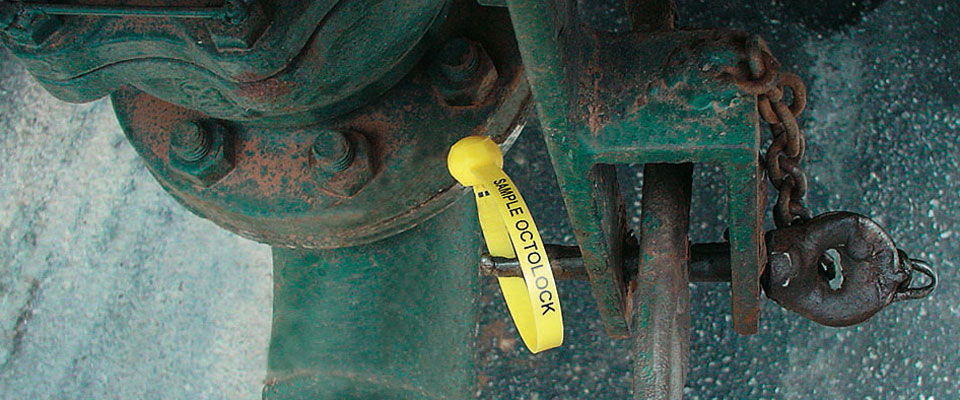

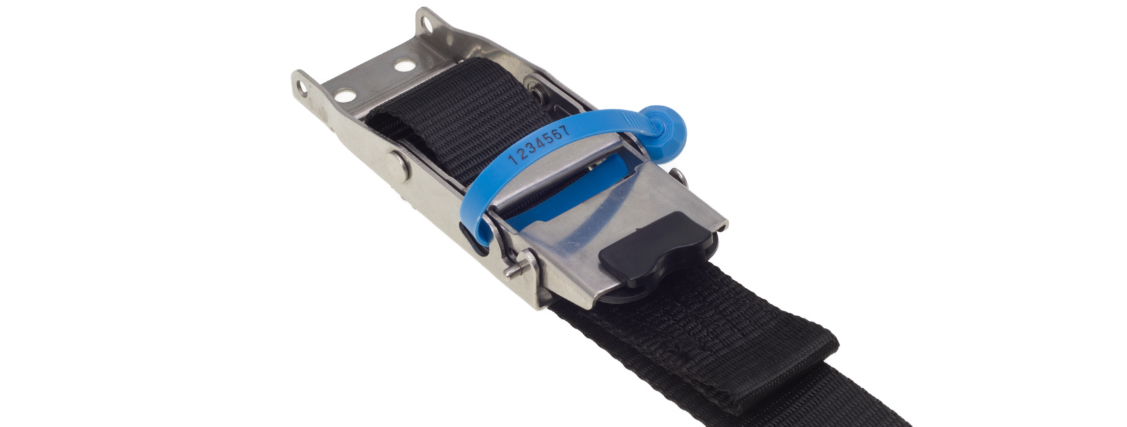

It's used where most fixed length seals are used - on side curtains, truck doors, cage doors, valves and pumps.
It's used where most fixed length seals are used - on side curtains, truck doors, cage doors, valves and pumps.

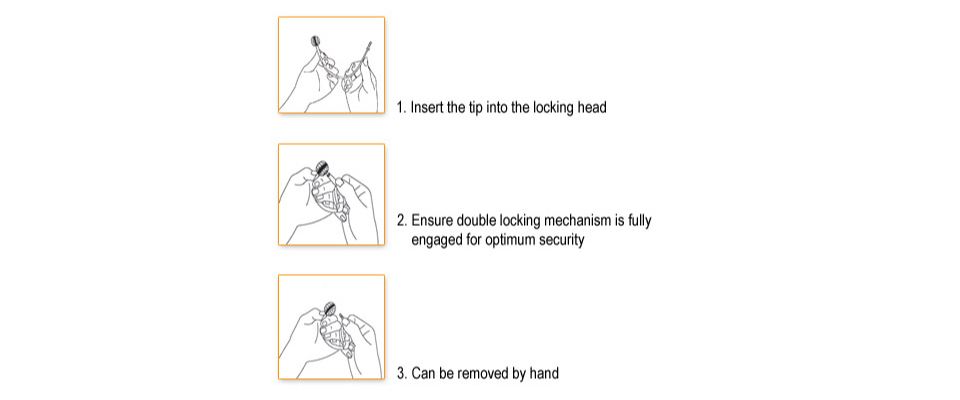

Easy to apply. Tool-less application and removal.
Easy to apply. Tool-less application and removal.
